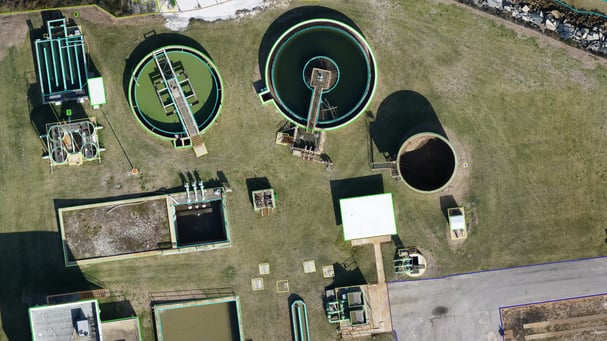

In the case of the Holley-Navarre water treatment plant, Ruben was facing a host of site-specific surveying challenges, including obtaining measurements from the top of water tanks, catwalks, and restricted areas. Additionally, the project included mapping a long corridor between Holley-Navarre and a neighboring plant. Project manager Ron Ruben, PLS determined that UAS photogrammetric data collection would be the safest and most efficient field method. However, due to the complicated and extensive nature of the treatment plant and corridor, the project was on track to present a significant challenge back in the office. Having dealt with the tedious process of extracting linework from aerial imagery in past projects, Ruben knew his drafting team would have to spend days identifying and tracing the site features to create the final CAD deliverables.

Conventional surveying can be an inherently inefficient process. Maneuvering equipment while paying attention to hazardous surroundings, like traffic or precarious footings, means surveyors have to split their focus and expend more time and energy to ensure they stay safe while collecting accurate data. This can be especially taxing and cumbersome when covering a large site. Drones are helping to solve these issues, but this innovative, time-saving surveying field method is creating a new, time-consuming office challenge.

Having been introduced to AirWorks in the fall of 2021 by their Part 107 pilot, Ross Kenney, Ruben realized the water treatment plant's feature-packed layout and lengthy connection route made the Holley-Navarre project a prime candidate to send off for processing. AirWorks’ AI software ended up being the ideal solution for expertly extracting the 2D linework for the unique site features, including:

• Outer and inner walls of wastewater treatment tanks

• Catwalks across tanks

• Manholes

• Concrete pads

• Utility boxes

• Pavement

• Fences

• Light poles and overhead lines

• Vegetation

‍

Although their drone program was a big win for field efficiency, Ruben’s team struggled to match that efficiency in the office. By integrating AirWorks into their workflow, Ruben Surveying & Mapping now has a modern drafting solution that complements the sleek performance of their field tech. Currently, Ruben sends any UAS as-built or ALTA surveys to AirWorks for CAD linework and feature extraction. Moving forward, he hopes to find new project types and ventures in which his team can further involve AirWorks. "It seems to me that using AirWorks to extract linework and features from aerial imagery is a necessary step to continue to push the surveying and mapping industry forward."
